SweepGradient

Inherits: Gradient

Creates a sweep gradient centered at center that starts at start_angle and ends at end_angle.

More information here.

Properties

• center(Alignment) –

  The center of the gradient, as an offset into the (-1.0, -1.0) x (1.0, 1.0) square

• end_angle(Number) –

  The angle in radians at which stop 1.0 of

• start_angle(Number) –

  The angle in radians at which stop 0.0 of

Properties

center

center: Alignment = field(default_factory=lambda: CENTER)

The center of the gradient, as an offset into the (-1.0, -1.0) x (1.0, 1.0) square describing the gradient which will be mapped onto the paint box.

For example, an Alignment.CENTER will place the sweep gradient in the center of the box.

end_angle

end_angle: Number = pi * 2

The angle in radians at which stop 1.0 of the gradient is placed.

start_angle

start_angle: Number = 0.0

The angle in radians at which stop 0.0 of the gradient is placed.

Examples

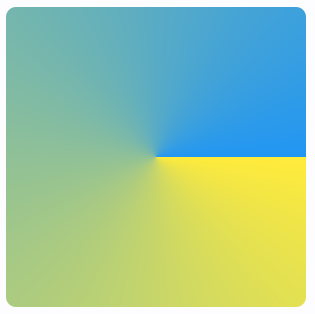

Container with sweep gradient

import math

import flet as ft


def main(page: ft.Page):
    page.add(
        ft.Container(
            alignment=ft.Alignment.CENTER,
            width=150,
            height=150,
            border_radius=ft.BorderRadius.all(5),
            gradient=ft.SweepGradient(
                center=ft.Alignment.CENTER,
                start_angle=0.0,
                end_angle=math.pi * 2,
                stops=[0.0, 0.25, 0.5, 0.75, 1.0],
                colors=[
                    "0xFF4285F4",
                    "0xFF34A853",
                    "0xFFFBBC05",
                    "0xFFEA4335",
                    "0xFF4285F4",
                ],
            ),
        )
    )


ft.run(main)
