Row

Displays its children in a horizontal array.

To cause a child control to expand and fill the available horizontal space, set its expand property.

Inherits: LayoutControl, ScrollableControl, AdaptiveControl

Properties

• alignment(MainAxisAlignment) –

  Defines how the child controls should be placed horizontally.

• controls(list[Control]) –

  A list of Controls to display.

• intrinsic_height(bool) –

  If True, the Row will be as tall as the tallest child control.

• run_alignment(MainAxisAlignment) –

  How the runs should be placed in the cross-axis when wrap=True.

• run_spacing(Number) –

  Spacing between runs when wrap=True.

• spacing(Number) –

  The spacing between the child controls.

• tight(bool) –

  Specifies how much space should be occupied horizontally.

• vertical_alignment(CrossAxisAlignment) –

  Defines how the child controls should be placed vertically.

• wrap(bool) –

  When set to True the Row will put child controls into additional rows (runs) if

Examples

Live example

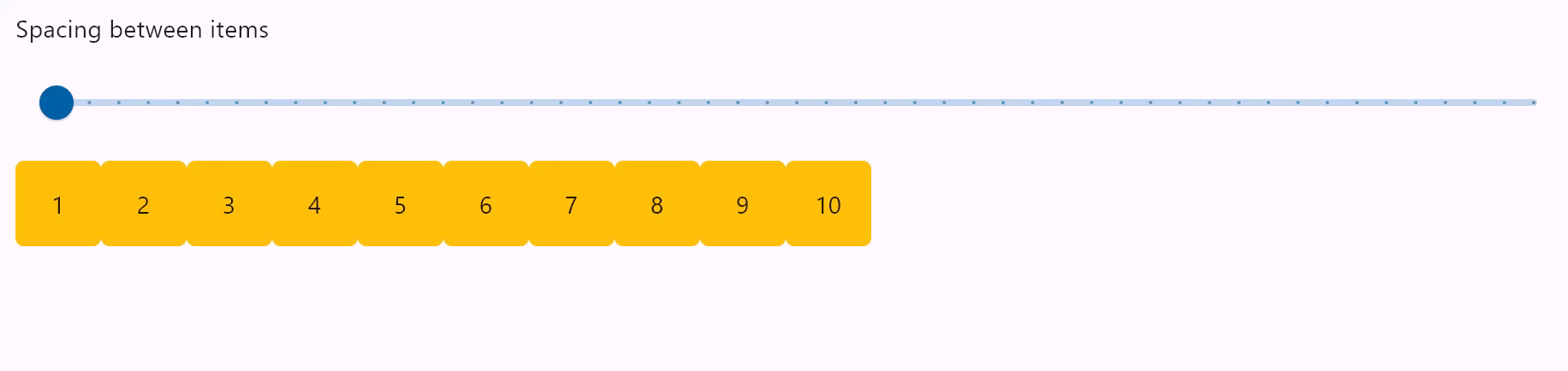

Spacing children

import flet as ft


def main(page: ft.Page):
    def generate_items(count: int):
        return [
            ft.Container(
                content=ft.Text(value=str(i)),
                alignment=ft.Alignment.CENTER,
                width=50,
                height=50,
                bgcolor=ft.Colors.AMBER,
                border_radius=ft.BorderRadius.all(5),
            )
            for i in range(1, count + 1)
        ]

    def handle_slider_change(e: ft.Event[ft.Slider]):
        row.spacing = int(e.control.value)
        row.update()

    page.add(
        ft.Column(
            controls=[
                ft.Text("Spacing between items"),
                ft.Slider(
                    min=0,
                    max=50,
                    divisions=50,
                    value=0,
                    label="{value}",
                    on_change=handle_slider_change,
                ),
            ]
        ),
        row := ft.Row(
            spacing=0, controls=generate_items(10), scroll=ft.ScrollMode.AUTO
        ),
    )


ft.run(main)

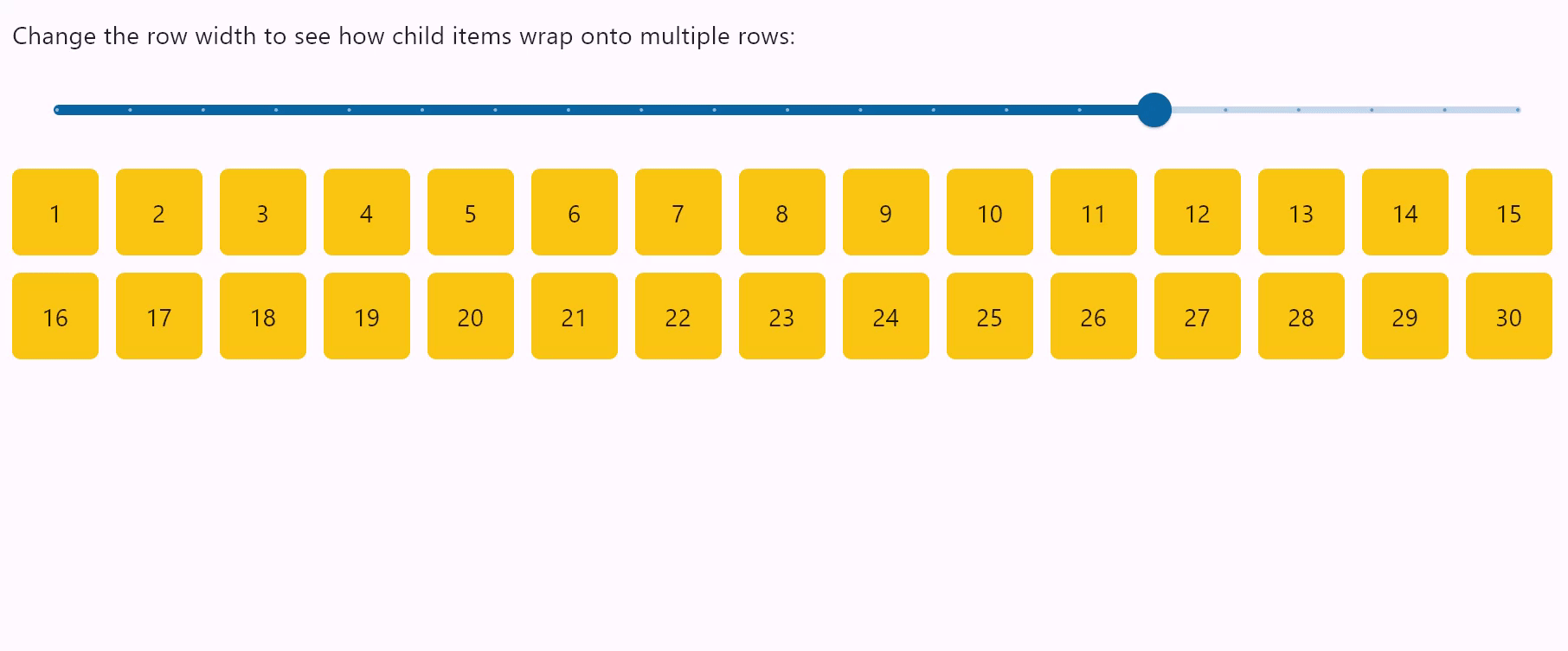

Wrapping children

import flet as ft


def main(page: ft.Page):
    def generate_items(count: int):
        return [
            ft.Container(
                content=ft.Text(value=str(i)),
                alignment=ft.Alignment.CENTER,
                width=50,
                height=50,
                bgcolor=ft.Colors.AMBER,
                border_radius=ft.BorderRadius.all(5),
            )
            for i in range(1, count + 1)
        ]

    def handle_slider_change(e: ft.Event[ft.Slider]):
        row.width = float(e.control.value)
        row.update()

    page.add(
        ft.Column(
            controls=[
                ft.Text(
                    "Change the row width to see how child items wrap onto multiple rows:"
                ),
                ft.Slider(
                    min=0,
                    max=page.window.width,
                    divisions=20,
                    value=page.window.width,
                    label="{value}",
                    on_change=handle_slider_change,
                ),
            ]
        ),
        row := ft.Row(
            wrap=True,
            spacing=10,
            run_spacing=10,
            controls=generate_items(30),
            width=page.window.width,
        ),
    )


ft.run(main)

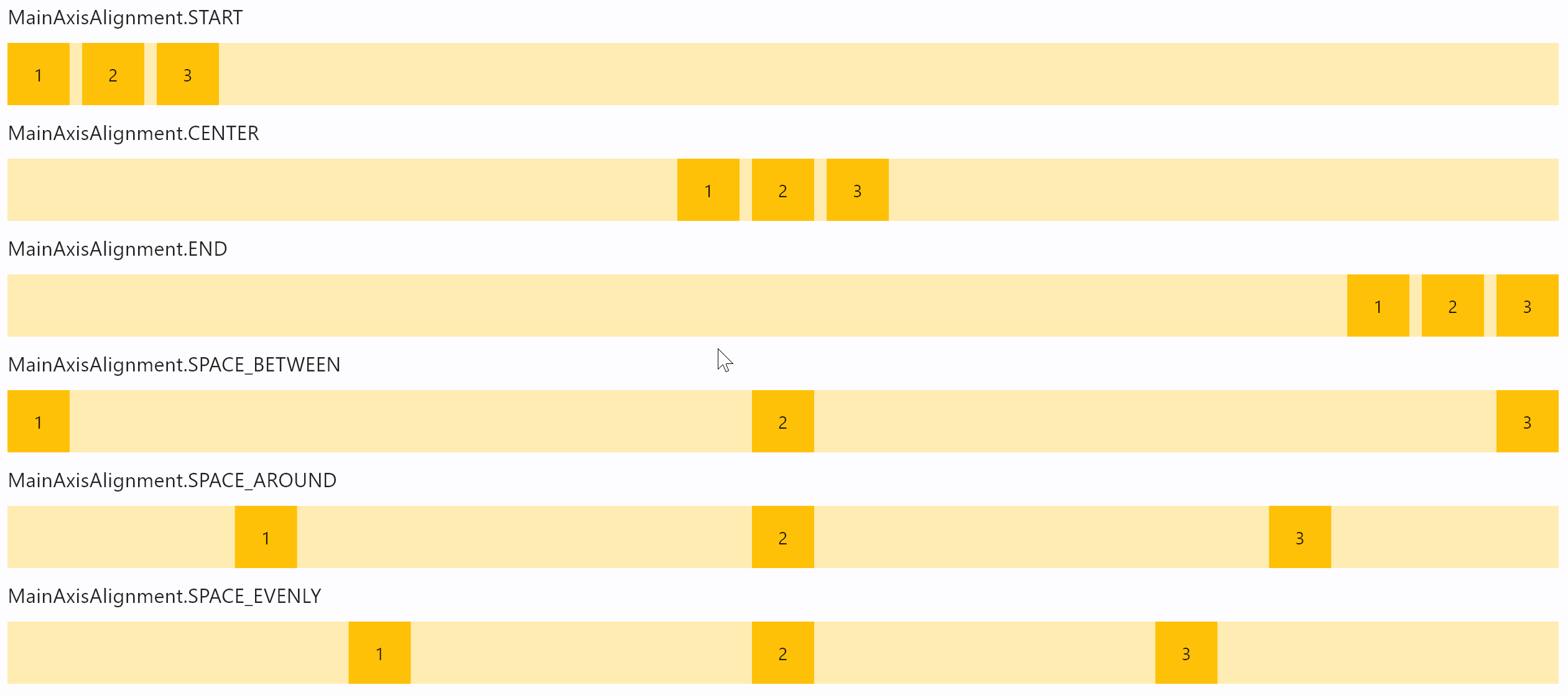

Setting horizontal alignment

import flet as ft


class RowWithAlignment(ft.Column):
    def __init__(self, alignment: ft.MainAxisAlignment):
        super().__init__()
        self.controls = [
            ft.Text(str(alignment), size=16),
            ft.Container(
                content=ft.Row(self.generate_items(3), alignment=alignment),
                bgcolor=ft.Colors.AMBER_100,
            ),
        ]

    @staticmethod
    def generate_items(count: int):
        return [
            ft.Container(
                content=ft.Text(value=str(i)),
                alignment=ft.Alignment.CENTER,
                width=50,
                height=50,
                bgcolor=ft.Colors.AMBER_500,
            )
            for i in range(1, count + 1)
        ]


def main(page: ft.Page):
    page.scroll = ft.ScrollMode.AUTO

    page.add(
        ft.Column(
            scroll=ft.ScrollMode.AUTO,
            controls=[
                RowWithAlignment(ft.MainAxisAlignment.START),
                RowWithAlignment(ft.MainAxisAlignment.CENTER),
                RowWithAlignment(ft.MainAxisAlignment.END),
                RowWithAlignment(ft.MainAxisAlignment.SPACE_BETWEEN),
                RowWithAlignment(ft.MainAxisAlignment.SPACE_AROUND),
                RowWithAlignment(ft.MainAxisAlignment.SPACE_EVENLY),
            ],
        )
    )


ft.run(main)

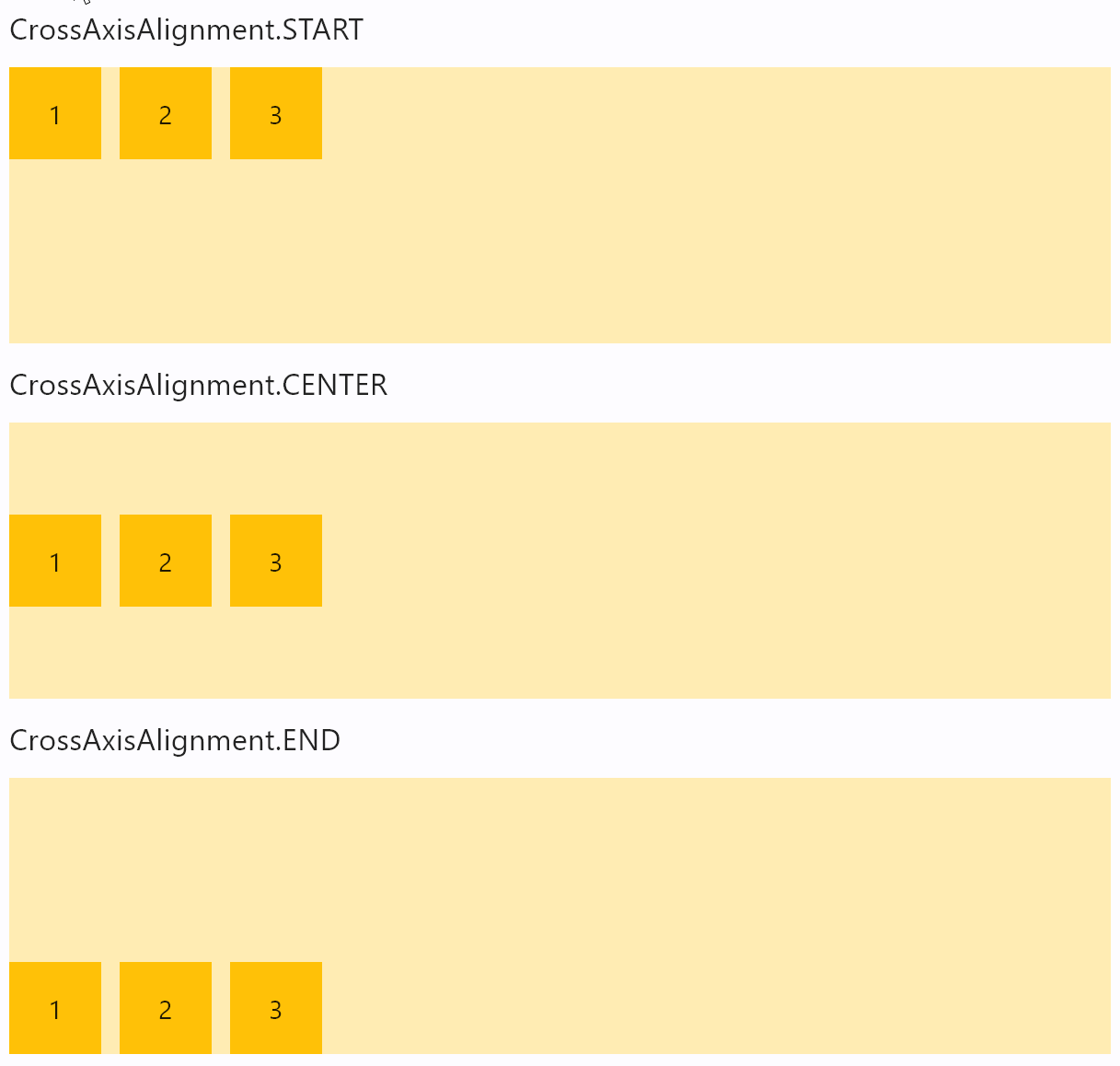

Setting vertical alignment

import flet as ft


class RowWithVerticalAlignment(ft.Column):
    def __init__(self, alignment: ft.CrossAxisAlignment):
        super().__init__()
        self.controls = [
            ft.Text(str(alignment), size=16),
            ft.Container(
                content=ft.Row(self.generate_items(3), vertical_alignment=alignment),
                bgcolor=ft.Colors.AMBER_100,
                height=150,
            ),
        ]

    @staticmethod
    def generate_items(count: int):
        return [
            ft.Container(
                content=ft.Text(value=str(i)),
                alignment=ft.Alignment.CENTER,
                width=50,
                height=50,
                bgcolor=ft.Colors.AMBER_500,
            )
            for i in range(1, count + 1)
        ]


def main(page: ft.Page):
    page.add(
        RowWithVerticalAlignment(ft.CrossAxisAlignment.START),
        RowWithVerticalAlignment(ft.CrossAxisAlignment.CENTER),
        RowWithVerticalAlignment(ft.CrossAxisAlignment.END),
    )


ft.run(main)

Properties

alignment

alignment: MainAxisAlignment = START

Defines how the child controls should be placed horizontally.

controls

controls: list[Control] = field(default_factory=list)

A list of Controls to display.

intrinsic_height

intrinsic_height: bool = False

If True, the Row will be as tall as the tallest child control.

run_alignment

run_alignment: MainAxisAlignment = START

How the runs should be placed in the cross-axis when wrap=True.

run_spacing

run_spacing: Number = 10

Spacing between runs when wrap=True.

spacing

spacing: Number = 10

The spacing between the child controls.

Note

Has effect only when alignment is set to MainAxisAlignment.START, MainAxisAlignment.END, or MainAxisAlignment.CENTER.

tight

tight: bool = False

Specifies how much space should be occupied horizontally.

Defaults to False, meaning all space is allocated to children.

vertical_alignment

vertical_alignment: CrossAxisAlignment = CENTER

Defines how the child controls should be placed vertically.

wrap

wrap: bool = False

When set to True the Row will put child controls into additional rows (runs) if they don't fit a single row.
