RangeSlider

A Material Design range slider. Used to select a range from a range of values. A range slider can be used to select from either a continuous or a discrete set of values. The default is to use a continuous range of values from min to max.

Inherits: LayoutControl

Properties

Events

Examples#

Live example

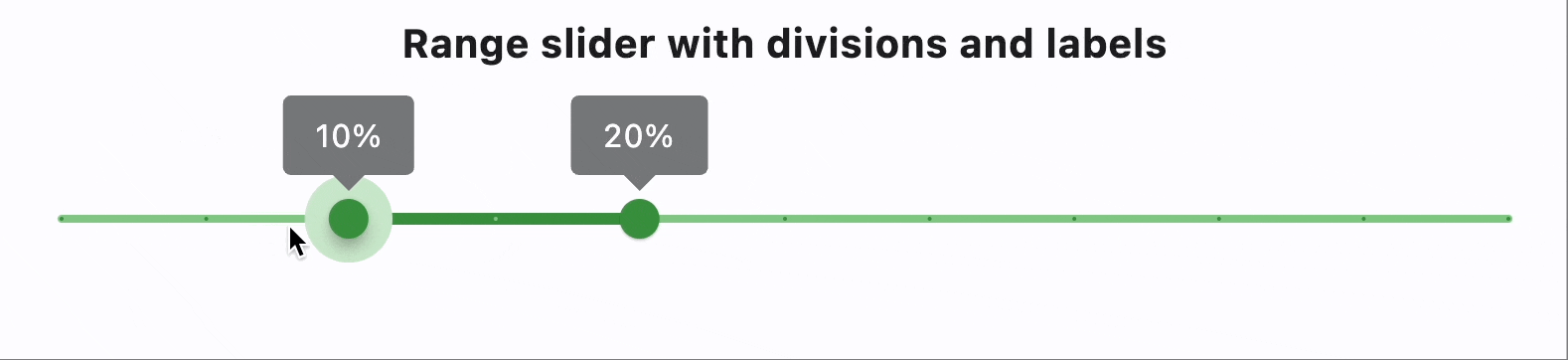

Basic Example#

import flet as ft


def main(page: ft.Page):
    page.add(
        ft.Column(
            horizontal_alignment=ft.CrossAxisAlignment.CENTER,
            controls=[
                ft.Text(
                    value="Range slider with divisions and labels",
                    size=20,
                    weight=ft.FontWeight.BOLD,
                ),
                ft.Container(height=30),
                ft.RangeSlider(
                    min=0,
                    max=50,
                    start_value=10,
                    divisions=10,
                    end_value=20,
                    inactive_color=ft.Colors.GREEN_300,
                    active_color=ft.Colors.GREEN_700,
                    overlay_color=ft.Colors.GREEN_100,
                    label="{value}%",
                ),
            ],
        )
    )


ft.run(main)

basic

RangeSlider with events#

import flet as ft


def main(page: ft.Page):
    page.scroll = ft.ScrollMode.AUTO

    def handle_slider_change_start(e: ft.Event[ft.RangeSlider]):
        print(f"on_change_start: {e.control.start_value}, {e.control.end_value}")

    def handle_slider_change(e: ft.Event[ft.RangeSlider]):
        print(f"on_change: {e.control.start_value}, {e.control.end_value}")

    def handle_slider_change_end(e: ft.Event[ft.RangeSlider]):
        print(f"on_change_end: {e.control.start_value}, {e.control.end_value}")
        message.value = f"on_change_end: {e.control.start_value}, {e.control.end_value}"
        page.update()

    page.add(
        ft.Column(
            horizontal_alignment=ft.CrossAxisAlignment.CENTER,
            controls=[
                ft.Text(
                    value="Range slider with events",
                    size=20,
                    weight=ft.FontWeight.BOLD,
                ),
                ft.Container(height=30),
                ft.RangeSlider(
                    divisions=50,
                    min=0,
                    max=50,
                    start_value=10,
                    end_value=20,
                    on_change_start=handle_slider_change_start,
                    on_change=handle_slider_change,
                    on_change_end=handle_slider_change_end,
                ),
                message := ft.Text(),
            ],
        )
    )


ft.run(main)

Properties#

active_color #

active_color: ColorValue | None = None

The color to use for the portion of the slider track that is active.

The "active" segment of the range slider is the span between the thumbs.

divisions #

divisions: int | None = None

The number of discrete divisions.

Typically used with label to show the current discrete values.

If not set, the slider is continuous.

end_value #

end_value: Number

The currently selected end value for the slider.

The slider's right thumb is drawn at a position that corresponds to this value.

Raises:

inactive_color #

inactive_color: ColorValue | None = None

The color for the inactive portions of the slider track.

The "inactive" segments of the slider are the span of tracks between the min and the start thumb, and the end thumb and the max.

label #

label: str | None = None

A label to show above the slider thumbs when the slider is active. The value of label may contain {value} which will be replaced with a current slider start_value and end_value.

If not set, then the labels will not be displayed.

max #

max: Number | None = None

The maximum value the user can select. Must be greater than or equal to min.

If the max is equal to the min, then the slider is disabled.

Defaults to 1.0.

Raises:

min #

min: Number | None = None

The minimum value the user can select.

Defaults to 0.0. Must be less than or equal to max.

If the max is equal to the min, then the slider is disabled.

Raises:

mouse_cursor #

mouse_cursor: ControlStateValue[MouseCursor] | None = None

The cursor for a mouse pointer entering or hovering over this control.

overlay_color #

overlay_color: ControlStateValue[ColorValue] | None = None

The highlight color that's typically used to indicate that the range slider thumb is in HOVERED or DRAGGED ControlState .

round #

round: int | None = None

The number of decimals displayed on the label containing {value}.

The default is 0 (displays value rounded to the nearest integer).

start_value #

start_value: Number

The currently selected start value for the slider.

The slider's left thumb is drawn at a position that corresponds to this value.

Raises: ValueError: If start_value is less than min or greater than end_value.

Events#

on_change #

on_change: ControlEventHandler[RangeSlider] | None = None

Called when the state of the Slider is changed.

on_change_end #

on_change_end: ControlEventHandler[RangeSlider] | None = (
    None
)

Called when the user is done selecting a new value for the slider.

on_change_start #

on_change_start: ControlEventHandler[RangeSlider] | None = (
    None
)

Called when the user starts selecting a new value for the slider.
