ProgressRing

A material design circular progress indicator, which spins to indicate that the application is busy.

A control that shows progress along a circle.

Inherits: LayoutControl

Properties

Examples#

Live example

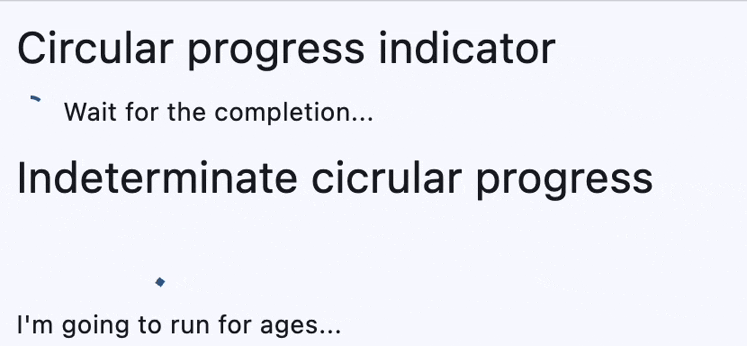

Determinate and indeterminate progress rings#

import asyncio

import flet as ft


async def main(page: ft.Page):
    page.add(
        ft.Text(
            value="Circular progress indicator",
            theme_style=ft.TextThemeStyle.HEADLINE_SMALL,
        ),
        ft.Row(
            controls=[
                determinate_ring := ft.ProgressRing(
                    width=16, height=16, stroke_width=2
                ),
                determinate_message := ft.Text("Wait for the completion..."),
            ]
        ),
        ft.Text(
            value="Indeterminate cicrular progress",
            theme_style=ft.TextThemeStyle.HEADLINE_SMALL,
        ),
        ft.Column(
            horizontal_alignment=ft.CrossAxisAlignment.CENTER,
            controls=[ft.ProgressRing(), ft.Text("I'm going to run for ages...")],
        ),
    )

    for i in range(0, 101):
        determinate_ring.value = i * 0.01
        await asyncio.sleep(0.1)
        if i == 100:
            determinate_message.value = "Finished!"
        page.update()


ft.run(main)

determinate-and-indeterminate

Gauge with progress#

import flet as ft


def main(page: ft.Page):
    page.add(
        ft.Stack(
            width=100,
            height=100,
            controls=[
                ft.Container(content=ft.Text("60%"), alignment=ft.Alignment.CENTER),
                ft.ProgressRing(value=0.6, width=100, height=100),
            ],
        )
    )


ft.run(main)

Properties#

bgcolor #

bgcolor: ColorValue | None = None

Color of the circular track being filled by the circular indicator.

color #

color: ColorValue | None = None

The progress indicator's color.

padding #

padding: PaddingValue | None = None

The padding around the indicator track.

If None, ProgressIndicatorTheme.circular_track_padding is used.

If that's is also None and year_2023 is False, defaults to Padding.all(4.0).

Otherwise, defaults to Padding.all(0.0).

semantics_label #

semantics_label: str | None = None

Used to identify the purpose of this progress bar for screen reading software.

semantics_value #

semantics_value: Number | None = None

Used for determinate progress indicators to indicate how much progress has been made.

size_constraints #

size_constraints: BoxConstraints | None = None

Defines the minimum and maximum size of the progress indicator.

If None, ProgressIndicatorTheme.size_constraints is used.

If that's is also None, defaults to a minimum width and height of 36.

stroke_align #

stroke_align: Number | None = None

The relative position of the stroke.

Value typically ranges be -1.0 (inside stroke) and 1.0 (outside stroke).

A value of 0 (center stroke) will center the border on the edge of the control.

If ProgressRing.year_2023 is True, then the default value is 0. Otherwise, the default value is -1.

stroke_cap #

stroke_cap: StrokeCap | None = None

The progress indicator's line ending.

stroke_width #

stroke_width: Number | None = None

The width of the line used to draw the circle.

track_gap #

track_gap: Number | None = None

The gap between the active indicator and the background track.

If year_2023 is True or Theme.use_material3 is False, then no track gap will be drawn.

Set track_gap to 0 to hide this track gap.

If None, ProgressIndicatorTheme.track_gap is used.

If that's is also None, defaults to 4.0.

value #

value: Number | None = None

The value of this progress indicator.

A value of 0.0 means no progress and 1.0 means that progress is complete. The value will be clamped to be in the range 0.0 - 1.0. If None, this progress indicator is indeterminate, which means the indicator displays a predetermined animation that does not indicate how much actual progress is being made.

year_2023 #

year_2023: bool | None = None

If this is set to False, the ProgressRing will use the latest Material Design 3 appearance, which was introduced in December 2023.

When True, the ProgressRing will use the 2023 Material Design 3 appearance.

If not set, then the ProgressIndicatorTheme.year_2023 will be used, which is False by default.

If Theme.use_material3 is False, then this property is ignored.
