CupertinoPicker

An iOS-styled picker.

Inherits: LayoutControl

Properties

• bgcolor(ColorValue | None) –

  The background color of this timer picker.

• controls(list[Control]) –

  A list of controls representing items in this picker.

• default_selection_overlay_bgcolor(ColorValue) –

  The default background color of the selection_overlay.

• diameter_ratio(Number) –

  Relative ratio between this picker's height and the simulated cylinder's diameter.

• item_extent(Number) –

  The uniform height of all controls.

• looping(bool) –

  If True, children on a wheel can be scrolled in a loop.

• magnification(Number) –

  The zoomed-in or magnification rate of the magnifier.

• off_axis_fraction(Number) –

  How much the wheel is horizontally off-center, as a fraction of its width.

• selected_index(int) –

  The index (starting from 0) of the selected item in the controls list.

• selection_overlay(Control | None) –

  A control overlaid on the picker to highlight the selected entry, centered and

• squeeze(Number) –

  The angular compactness of the children on the wheel.

• use_magnifier(bool) –

  Whether to use the magnifier for the center item of this picker's wheel.

Events

• on_change(ControlEventHandler[CupertinoPicker] | None) –

  Called when the selection changes.

Examples

Live example

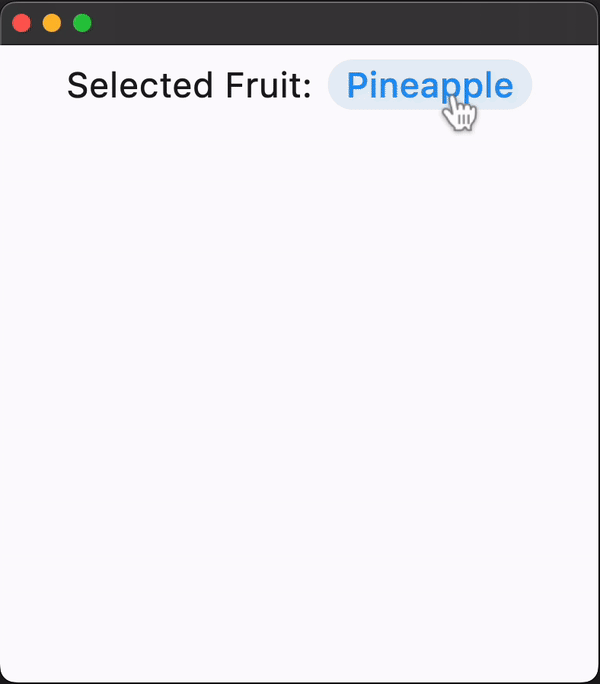

Fruit selection

import flet as ft

FRUITS = [
    "Apple",
    "Mango",
    "Banana",
    "Orange",
    "Pineapple",
    "Strawberry",
]


def main(page: ft.Page):
    page.horizontal_alignment = ft.CrossAxisAlignment.CENTER

    selected_fruit_ref = ft.Ref[ft.Text]()

    def handle_selection_change(e: ft.Event[ft.CupertinoPicker]):
        selected_fruit_ref.current.value = FRUITS[int(e.data)]
        page.update()

    cupertino_picker = ft.CupertinoPicker(
        selected_index=3,
        magnification=1.22,
        squeeze=1.2,
        use_magnifier=True,
        on_change=handle_selection_change,
        controls=[ft.Text(value=f) for f in FRUITS],
    )

    page.add(
        ft.Row(
            tight=True,
            controls=[
                ft.Text("Selected Fruit:", size=23),
                ft.TextButton(
                    content=ft.Text(value=FRUITS[3], ref=selected_fruit_ref, size=23),
                    style=ft.ButtonStyle(color=ft.Colors.BLUE),
                    on_click=lambda e: page.show_dialog(
                        ft.CupertinoBottomSheet(
                            content=cupertino_picker,
                            height=216,
                            padding=ft.Padding.only(top=6),
                        )
                    ),
                ),
            ],
        ),
    )


ft.run(main)

Properties

bgcolor

bgcolor: ColorValue | None = None

The background color of this timer picker.

controls

controls: list[Control] = field(default_factory=list)

A list of controls representing items in this picker.

default_selection_overlay_bgcolor

default_selection_overlay_bgcolor: ColorValue = (
    TERTIARY_SYSTEM_FILL
)

The default background color of the selection_overlay.

diameter_ratio

diameter_ratio: Number = 1.07

Relative ratio between this picker's height and the simulated cylinder's diameter.

Smaller values create more pronounced curvatures in the scrollable wheel.

item_extent

item_extent: Number = 32.0

The uniform height of all controls.

Raises:

• ValueError –

  If item_extent is not strictly greater than 0.0.

looping

looping: bool = False

If True, children on a wheel can be scrolled in a loop.

magnification

magnification: Number = 1.0

The zoomed-in or magnification rate of the magnifier.

If the value is greater than 1.0, the item in the center will be zoomed in by that rate, and it will also be rendered as flat, not cylindrical like the rest of the list. The item will be zoomed-out if magnification is less than 1.0.

Note

Has effect only if use_magnifier is True.

Raises:

• ValueError –

  If magnification is not strictly greater than 0.0.

off_axis_fraction

off_axis_fraction: Number = 0.0

How much the wheel is horizontally off-center, as a fraction of its width.

selected_index

selected_index: int = 0

The index (starting from 0) of the selected item in the controls list.

selection_overlay

selection_overlay: Control | None = None

A control overlaid on the picker to highlight the selected entry, centered and matching the height of the center row.

Defaults to a rounded rectangle in iOS 14 style with default_selection_overlay_bgcolor as background color.

squeeze

squeeze: Number = 1.45

The angular compactness of the children on the wheel.

Raises:

• ValueError –

  If squeeze is not strictly greater than 0.0.

use_magnifier

use_magnifier: bool = False

Whether to use the magnifier for the center item of this picker's wheel.

Events

on_change

on_change: ControlEventHandler[CupertinoPicker] | None = (
    None
)

Called when the selection changes.
